CG and Control Throw Database

H-Models

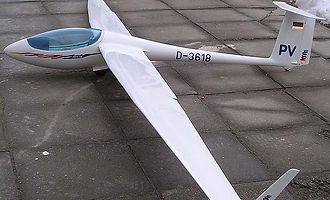

H-Model 1/3 Scale 6.6m Arcus



CG........



Throws...



Airleron tip         11mm up,  9mm down

Airleron              14mm up 12mm down

Flap Outer           5mm up   4mm down

Flap Inner

Elevator

Rudder





H-Model, 8.00m Duo Discus

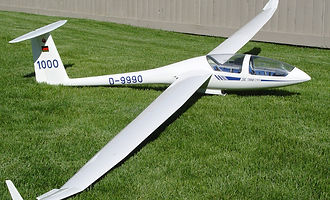

H-Model 40% Duo Discus, 8.00m

Length 3.4m

Wing area 2.5m sq

All up weight 25-30 kg

Wing profile   Selig 3/14 mod.



CG- 80mm From LE of wing at the fuse



Control throws



Ailerons +35mm -20mm

Elevator +25mm -18mm

Rudder     45mm both directions

Flaps     30mm Down

 H-Model 40% Arcus 8.00m

Please reload

LET Models

Scale            1:3

Span             6 m

Length             2,35 m

Profil             HQw 2,5/11-13%

Load             104 g/dm2

Central of gravity        102 mm from LE

Rudder             L / R 50mm

Ailerons             +10/-25 mm

Flaps             +3/-4 mm

Elevator             +13/-11 mm

Reiher

Scale            1:3,5

Span             5,4 m

Lenght           2,2 m

Profil              HQ 3,0

Weight empty             9350 g

Area             165 dm2

Central of gravity        166 mm from LE

Elevator             +15/-15 degrees

Rudder             L / R max

Ailerons             +25/-10 degrees

LET Models DG600 5/6.00M

DG600

Scale    1:3

Elevator             +14/-11 mm

Span             5/6 m

Rudder             L / R 50mm

Length             2,28 m

Ailerons             +10/-25 mm

Profil             HQW 2,5

Central of gravity             92 mm from LE

LET Models Minimoa 4.80m

Scale             1:3,5

Span             4,8 m

Length             2,0 m

Profil             HQ 3,0

Weight             8,5 kg

Wing area             1,7 m2

Central of gravity             180 mm from LE

Elevator             +15/-15 mm

Rudder             L / R max

Ailerons             +25/-10 mm

LET Models DFS Habicht 3.85m

DSF Habicht

Scale 1:3,5 (28.5%)

Wingspan: Wing area 151 1/2 inches 13.5 sq. ft

Span 3,85 m 1,25 m

Center of gravity behind wing leading edge at wing root 6 3/4

LET Models Nimbus 4, (2.64m)



Nimbus 4

Scale             1:10

Span             2,64 m

Lenght             0,78 m

Empty weight             590 g

Fly weight             cca 920 g

Profil             S 3021

Central of gravity             31 mm from LE

Elevator             -4/+8

Rudder             16/16

Ailerons             -3/+12



LET Models DG-808, 6.00m

DG 808

Scale             1:3

Elevator             +13/-11 mm

Span             6 m

Rudder             L / R 50mm

Length             2,35 m

Ailerons             +10/-25 mm

Profil             HQW 2,5

Central of gravity             95 mm from LE



LET Models Ventus 2c/2cx 5/6.00m

Ventus  2c/2cx

Scale             1:3

Span             5 m / 6 m

Length             2,35 m

Profil             HQ 2,5 (wood wings) HQw 2,5 (moulded wings)

Central of gravity             95-100 mm from LE (leading edge)

Elevator             +8/-16 mm

Rudder             L / R 45 degrees

Ailerons             +8/-13 mm

Flaps             +3/-2 mm

LET Models LF-20 6.60m

LF -20

Scale             1:3

Elevator             +13/-11 mm

Span             6,6 m

Rudder             L / R 50mm

Lenght             2,35 m

Ailerons             +10/-25 mm

Profil             HQW 2,5

Central of gravity             102 mm from LE



LET Models DG-800 5/6.00m

DG 800

Scale             1:3

Elevator             +13/-11 mm

Span             5/6 m

Rudder             L / R 50mm

Length             2,28 m

Ailerons             +10/-25 mm

Profil             HQW 2,5

Central of gravity             99 mm from LE



LET Models DG-1000 4.80-5.33m

DG 1000

Scale             1:3,75

Span             4,8 m / 5,33 m

Length             2,29 m

Profil             HQ 3,0 (wood wings) HQ 2,5 (moulded wings)

Load             107 /98 g/dm2

Central of gravity             72 mm from LE

Elevator             +15/-15 mm

Rudder             L / R 70mm

Ailerons             +15/-10 mm

Flaps             +3/-4 mm

LET Models ASW-24,27,28

Scale             1:6

Span             2,5 m / 3 m

Length             1,09 m

Profil             S 3021

Load             50 /42 g/dm2

Central of gravity             46 mm from LE

Elevator             +10/-10 mm

Rudder             L / R 20mm

Ailerons             +8/-15 mm
